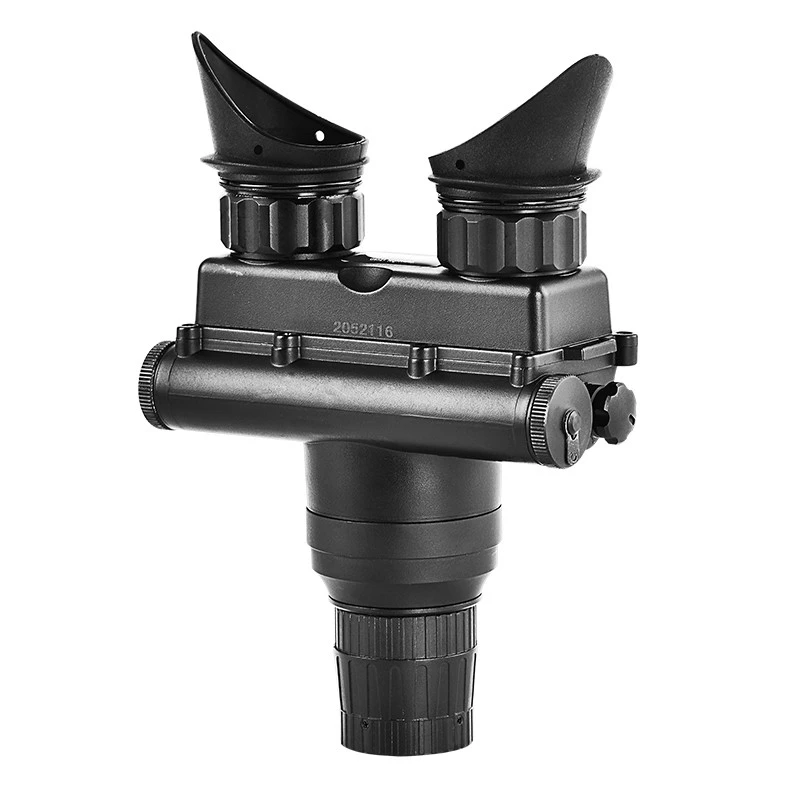

Helmet Mounted Night Vision Goggles

HAWKEEP HELMET MOUNTED NIGHT VISION GOGGLES



This night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality night vision system on the market. The night vision can be outfitted with high-performance Gen 2 and Gen 3 image intensifier tubes.



They are waterproof, rugged, and reliable by being made of top quality grade materials. The goggles provide a high quality night vision experience at any time, in pitch black conditions, in wet or dirty conditions, and in situations when your hands are busy. The night vision have a built-in infrared illuminator which creates "invisible" light, allowing your goggles to see in completely lightless situations. The night vision is equipped with Automatic Brightness Control to adjust image brightness in changing light conditions to maintain image definition and clarity. Additionally, the night vision has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The night vision goggles have proven themselves as a high performance NV device in detection, rescue and surveillance missions in extreme low-light conditions. This versatile system can be used as a handheld or hands-free goggles, or with an optional long-range Lens or compatible objective lenses that allow converting the night vision goggles into a powerful NV viewer with 3.0x, or 5.0x, magnification, depending on the lens the device is paired with.



Additional features include IR on and low battery indicators, automatic brightness control and auto-shut off function that shuts down the device within seconds when accidentally exposed to bright light, and an integrated IR illuminator for use in extremely low light conditions.These goggles ship with included accessories to make these goggles ready to operate right out of the box, a case, batteries, a head mount assembly, and many more!







Head mountable for hands-free usage

The night vision can be outfitted with high-performance Gen 2 and Gen 3 image intensifier tubes in green or white phosphor.

Multilayer wideband lens coating

Flip-up on-off

Built-in iR indicato

Built-in low battery indicator

Manual brightness control

Utilizes CR123A Lithium or AA battery

Automatic brightness control

Support detachable remote infrared light

Support replacing high-magnification lenses (4X/6X/8X) for distant viewing.

Bright light cut-off

IP65 waterproof and dustproof level (upgradeable to IP68)









AUTO/OFF/ON/IR Swith Knob

Battery Compartment

Objective Lens (focusing ring of objective lens)

Eyepiece(focusing ring of eyepiece)

Rubber Eye Cap

Mounting Part

Light Detector(Light Sensor)

IR Illuminator

IR Brightness Regulator





Brand	Hawkeep
Model	HKP-DG2051	HKP-DG3051
Generation(IIT)	Gen2+	Gen3
Resolution(lp/mm)	60-64	64-72
Figure Of Merit(FOM)	1400-1800	1600-2300
Sensitivity(µ A/lm)	700-1000	850-1200
SNR	23-28	28-32
Luminance Gain(cd/㎡/lx)	8000-12000	10000-20000
Photocathode Type	S25	GaAs
Magnification(X)	1
FOV (deg,°)	40
Focal Length	25
Diopter Adjustment(deg,°)	-1
Parallelism of Optical Axis	<0.1 ° /0.5
MTF	120lp/mm
Optical Distortion	<0.5% Max / 3% Max
Relative Illumination	>75%
Range of Focus (m)	0.25m to infinity
Dimensions(mm)	153 × 121 × 58
Weight(kg)	0.468
Switch Style	Rotary switch
Switch Position	OFF / ON / IR / AUTO
Power Supply (v)	2.6-4.2
Battery Pack	Optional
Battery Type (v)	1 × CR123A lithium battery / 2×AA battery
Battery Life(h)	60 h – 100 h
Low Battery Indicator	Yes
Overall Power Consumption	<0. 1W
Bright Light Cut-off	Yes
Automatic Brightness Control	Yes
Multilayer Wideband Lens Coating	Yes
Manual brightness control	Yes
Support replacing high-magnification lenses	Yes
Flip-Up On-Off	Yes
Infrared Illuminator	Built-in
IR Indicator	Yes
IR Wavelength(nm)	850
Detachable Remote Infrared Light	Yes
Battery Cover - Spring-Built-in Design	Yes
Operating Temperature (°C )	-51 to +49
Storage Temperature(°C )	-51 to +85
Relative Humidity	5%-98%
MTTF (h)	10000
Environmental Rating	IP65/ IP67
Guarantee(yr)	1









Distortion refers to the degree of distortion of the image of an object formed by an optical system relative to the object itself. Optical distortion refers to the degree of deformation calculated in optical theory.



Optical distortion is an important optical indicator of aviation transparent parts. It refers to the optical defect that causes the image of the observed object to be distorted when observing the object through aviation plexiglass.



Barrel distortion, also known as barrel distortion, refers to the distortion phenomenon of the image caused by the optical system in the form of a barrel-shaped expansion. Barrel distortion is more common in photographic lens imaging, especially wide-angle lens imaging. The image of a funhouse mirror that makes people short and fat is a more vivid example of barrel distortion.



Pincushion distortion, also known as pincushion distortion, refers to the phenomenon that the image caused by the optical system "contracts" to the middle. Pincushion distortion is more common in telephoto lens imaging. The image of a funhouse mirror that makes people thin and tall belongs to pincushion distortion.
