Description

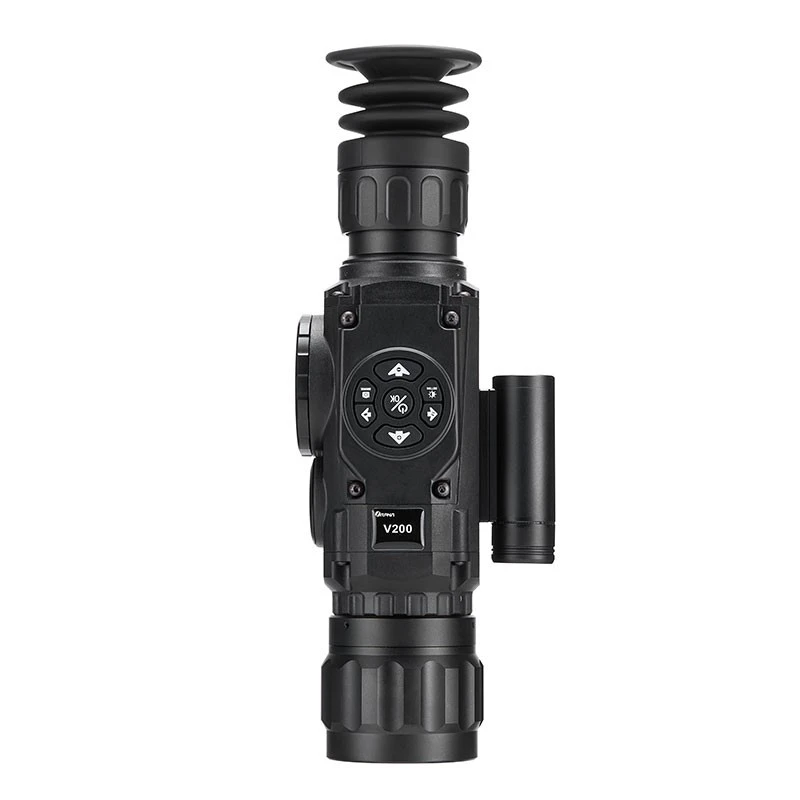

HAWKEEP DIGITAL NIGHT VISION SIGHT
Products Description
This is a digital night vision sight that can be used during the day and at night, and can be used for evidence collection. It supports WIFI remote control, contains GPS, and reticle. It can continuously change the magnification from 5x to 30x. The screen brightness can be adjusted in three levels, and the night mode can be adjusted in four levels.
Technical Parameters
| Brand | Hawkeep |
| Model | DDSMQM-001 |
| Sensor Resolution | 1920×1080 |
| Magnification | 5-30x |
| Smooth Zoom | Yes |
| Field of view(Degrees, °) (D, H, V are diagonal, horizontal, and vertical directions respectively) | D=7.36 H=5.9 V=4.4 |
| Focal Length | 50mm |
| Eye Relief | 10-30 mm |
| Diopter Adjustment(deg,°) | +5°/-5° |
| Photos and Videos Record | Yes |
| Video Record Resolution | 1920×1080 |
| Photographic Quality | 1920×1080 |
| Observation Pattern | Day / Night mode (color / black and white) |
| Night Vision Mode | Yes |
| Night Mode Gear | 1-4 Gear (N1 / N2 / N3 / N4) |
| IR Illuminator | Yes |
| IR Illuminator Wavelength(nm) | 850 |
| Screen Brightness Adjustment | Yes(1-3 gear) |
| Focus Range | 3m - ∞ |
| Micro SD Card | 4 to 128G |
| The HDMI Video Port | Yes |
| WiFi | iOS & Android (Streaming, Gallery, & Controls) |
| The WIFI connection APP effective distance | Within 20 meters |
| GPS | Yes |
| Microphone | Yes |
| Date Record | Yes |
| Battery Type | 4 × CR123A lithium battery(16340) |
| Other Power Supply Methods | Yes |
| Charging | USB |
| Low Power Indication | Yes |
| Language | Chinese, English |
| Dust and Waterproof Grade | Waterproof life |
| Tripod | Yes |
| Operating Temperature | -28°C to 48°C |
| Dimensions | 235×80×75mm |
| Weight | 0.9kg |
| Warranty | 1 year |
Additional Supplement
Image sensor, namely CIS, CMOS Image Sensor; CMOS, namely Complementary Metal Oxide Semiconductor.
Main indicators of image sensor:
CMOS size
Number of pixels
Unit pixel size
Resolution (Number of Pixels) Resolution/Number of pixels
MP: megapixel, megapixel (million pixels) Common ones are 0.3M, 1M, 2M, 5M, 13M, 20M, 40M, 100M (100 million pixels), etc. The number of pixels and resolution are two inseparable important concepts. Their combination determines the amount of image data. For images of the same size, the higher the resolution, the more pixels it contains. The total number of pixels refers to the sum of all pixels. The total number of pixels is one of the main technical indicators for measuring CMOS image sensors. The pixels used for effective photoelectric conversion and output of image signals in the total pixels of a CMOS image sensor are effective pixels. The total number of effective pixels belongs to the total number
