Dual Focusing Spotting Scope

HAWKEEP R20-60×82ED Remote Wireless Transmission Observation System Spotting Scope





1. Tough metal body, extending service life.

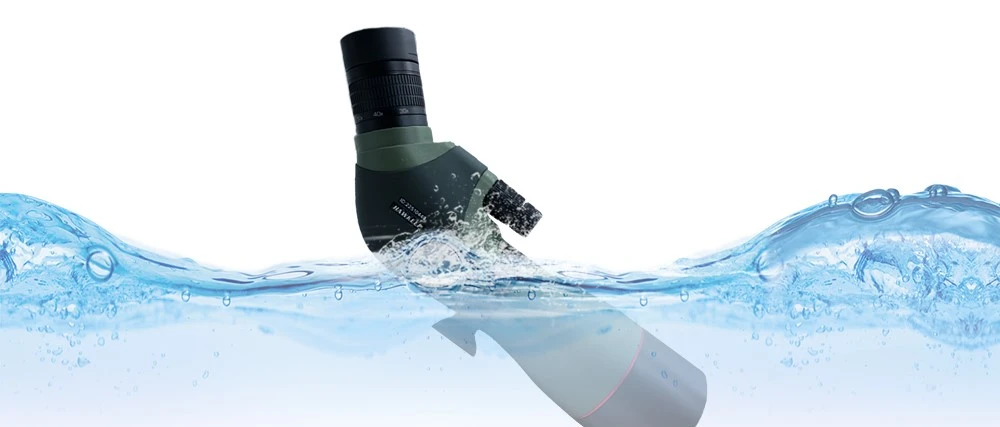

2. The front section is wrapped in rubber, which is shockproof and compressive.

3. 20-60 times zoom continuously, and the size scene can be switched at will.

4. FMC full broadband anti-reflection coating enhances the resolution and makes the video clearer and sharper.

5. The temperature ranges from-20℃ to 70℃, and it can be used normally in tropical or cold environments.

6. 82mm large caliber, wider field of vision and more comfortable viewing.





Brand	HAWKEEP
Model	R20-60×82ED
Focalizing System	2-knob fine focus
Magnification	20-60x
Glass	ED
Objective Lens Diameter	82mm
Group of Lens	12 groups
Coating	NSC
FOV Angle	45°
Field of View	30m/15m
Exit Pupil Diameter	1.3-4mm
Exit Pupil Distance	18-20mm
Luminance Factor	52.7°
Closest Focal Distance	5m
Waterproof	Nitrogen filling waterproof
High Temperature	70℃
Low Temperature	20℃
Dedicated Soft Bag	Yes
Tripod	Camera tripod
Size	500×400×260mm
Weight	1.8kg





Spotting scope

Black soft bag

Baldric

Objective lens cover

Guarantee card

Certificate of conformity

Instruction manual

Cleaning cloth





Note: This WiFi imaging camera only supports 2.4G WiFi, does not support 5g WiFi 2.4 GHz (better coverage at longer distances), 5GHz (usually faster). When connecting and selecting Wi-Fi network, please select 2.4G network.

SD card slot: please insert the SD card first, and then record the video. (SD card is not provided with this product).

Electronic eyepiece
Brand	HAWKEEP
Model	W36 electronic eyepiece
Sensor Type	Exmor CMOS
Sensor Size	1/3
Acquisition Resolution	2MP (1920x1080 pixel)
Color Filter Array	RGB bayer pattern
Pixel Size	3.0x3.0μm
A 10-bit ADC on chip
Data Transmission Wifi (2.4GHz)
Max. Number of frames per second (fps*)	1920x1080@30 fps, depending on the strength of Wi-Fi.
WIFI AP connection, IP connection, real-time viewing and camera control.
Storage	This product supports a maximum of 128GB SD card (SD card is not provided in this product).
Motion Monitoring	Yes
Supported operating systems	Android 4, 4 or higher, iOS7 or higher.
APP	HDlivecam IOS App store and Google Play store
Power Supply	Direct current 5V
Battery Type	Built-in 500mAh lithium battery
Tripod	M13/M17





1* WIFI electronic eyepiece+telescope adapter sleeve

1* Adapter ring for connecting M13 camera lens.

1* Adapter ring for connecting M17 camera lens.

1* USB cable, 1* bracket, 1* user manual





It is suitable for security and police, power monitoring, power maintenance, frontier posts, forest, grassland fire prevention, fishery, stargazing, navigation, lighthouse cruise, field observation, bird observation, and observation of sports events and concerts.





- Do not squeeze or hit the spotting scope during use or transportation!

- When transporting the spotting scope, make sure that the packaging is intact!

- Under any circumstances, don't disassemble the spotting scope without permission!

- When not used for a long time, please keep it in a ventilated and dry environment!
