Laser Rangefinder Telescope

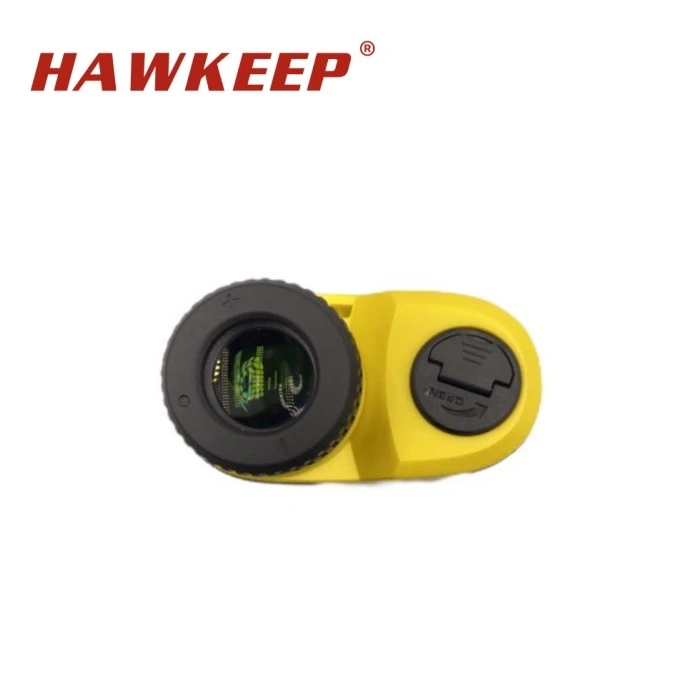

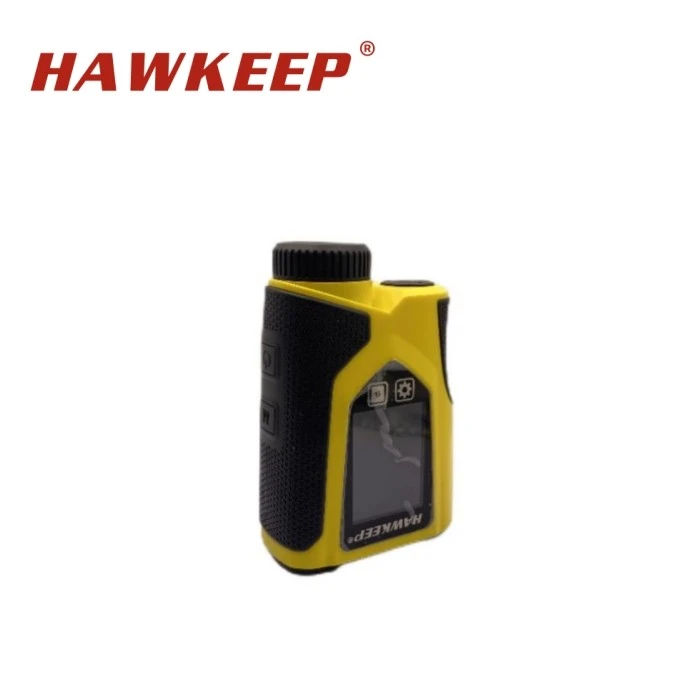

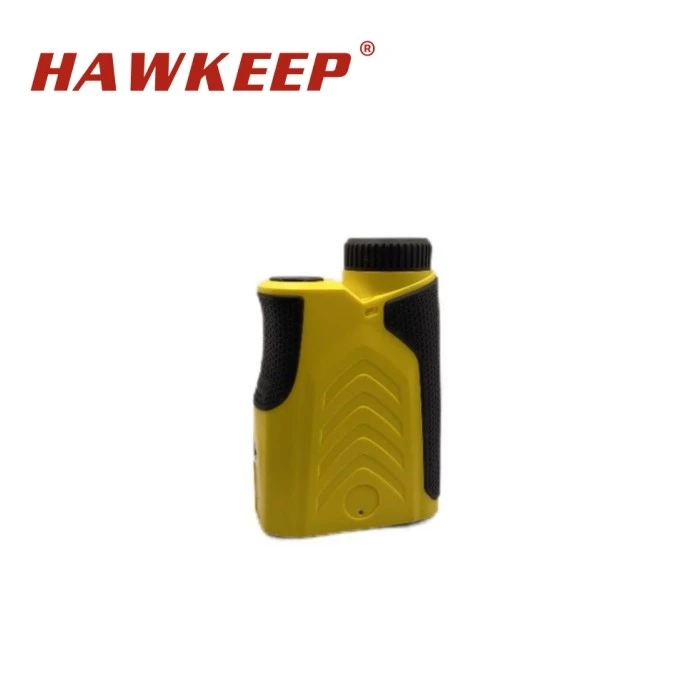

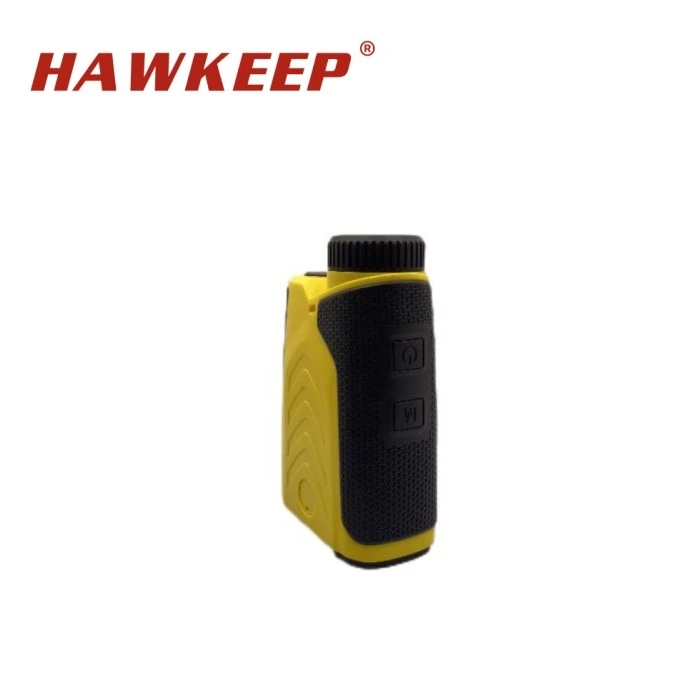

HAWKEEP UP Series Laser rangefinder monocular



This multifunctional laser rangefinder adopts the principle of 905nm laser ranging, integrates telescope, laser ranging and intelligent photoelectric measuring instrument for angle measurement, and adopts high-speed accurate algorithm to achieve the best measurement accuracy. It not only realizes the measurement function of target distance and angle, but also measures the height and speed of any span in space.





Data synchronous display, after measuring the object, you can read the measurement data on the external screen, and one person measure, multiple people read at the same time.



More convenient and more efficient, and the laser emission power of the instrument is small.



It is safe for human eyes without cooperative targets, and can range any target.



Small size, light weight and easy to carry.



Vibration function, tactile reminder, vibration perception reminder after measuring data.





█ Linear distance (distance measurement/SD slope distance)

█ Horizontal distance (HD)

█ Vertical distance (height measurement/VD)

█ Pitch angle (angle measurement)

█ Two-point height measurement (HT)

█ Three-point height measurement (HT/HD)

█ Distance between any two points in space (SD/ML)

█ Height difference between any two points in space (VD/ML)

█ Horizontal distance between any two points in space (HD/ML)

█ Speed measurement (KM/h)

█ Scanning function/continuous measurement (in SD/HD mode)

█ Closest distance measurement

█ Farthest distance measurement

█ Area and volume measurement (㎡/m³)

█ Temperature measurement

█ Tree measurement mode (HT TREE)

█ Flagpole mode (golf trajectory compensation mode)

█ Side color display auxiliary display

█ Bluetooth + APP data transmission

█ Data storage





Technical parameters
Model		UP80	UP100	UP120	UP150	UP200
Ranging performance	Ranging scope	0-800m	0-1000m	0-1200m	0-1500m	0-2000m
	Ranging accuracy	±0.1m(<400m) ±0.2m(<400m-1000m) ±1m(>1000m)
	Ranging resolution	0.01m
	Azimuth range	0°-359°
	Azimuth resolution	±1°;resoluition: 1°
	Inclination range	±90°
	Inclination accuracy	1°
Optical performance	Objective lens diameter	25mm
	Receiving diameter	20mm
	Optical magnification	8X
	FOV	7degrees
	Line field of view	366ft at 1000yd
	Eyepiece diameter	18mm
	Exit pupil diameter	3.6mm
	Diopter adjustment	Yes
	Diopter adjustment range	±5 diopters
	System transmittance	50%@550nm
	Optical coating	Multi-layer AR
	Exit pupil distance	18mm
	Optical material	Glass
	Ranging unit	M/Y/Ft/°/M²/M³/mbar/℃/KM/h
Display	Built-in transmissive LCD display screen	Yes
	External 2.0 inch TFT color display screen	Yes
Battery specs	Battery type	CR2
	Battery life	>8000times
Environmental performance	Waterproof grade	IPX7
	Working temperature	-20C to +60℃
	Storage temperature	-40C to +80C℃
Physical performance	Physical performance	UNC 1/4-20
	Size	111x75x40mm
	Weight	220g
Ranging mode	Horizontal distance/linear distance HD SD	√
	Vertical distance VD/tilt angle	√
	Two-point altimetry HT	√
	Three-point altimetry HD HT	√
	Height difference measurement at any two points VD ML	√
	Horizontal distance between two points in space HD ML	√
	Distance between two points in space/azimuth (span) SD ML	√
	Azimuth AZ	√
	Other measurement modes according to practical application.	√
	Bluetooth	√
	APP data transmission +APP control measurement	√
	Speed measurement KM/h	√
	Golf mode (flagpole mode)	√
Function	Temperature℃	√
	Humidity	√
	Air pressure (altitude)	√
	Data storage	100 groups
	Square M²	√
	Volume M³	√
	Circumference C	√
	Tree measuring mode	√
	Close range mode	√
		√
	Long range mode	√
		√
	Continuous ranging mode (in HD/SD mode)	√
	Vibration reminder	√
	Electric quantity display	√
Measuring scene function	Special measurement (sag measurement, cross-crossing, crossing height, crossing mileage, span measurement, line-to-ground height, floor distance measurement, hazard tree determination, clearance distance measurement, azimuth measurement, horizontal angle measurement, height difference angle measurement, eccentricity measurement, line distance measurement, single point measurement, two-point height measurement, three-point height measurement, distance measurement at any two points in space, length measurement, slope measurement, rectangular area measurement, etc.





Environmental protection, military, police, transportation, electric power, forestry, telecommunications, archaeology, water conservancy, architecture, navigation and aviation, railway planning, agricultural investigation, environmental protection, animal observation, fire protection system, golf course, network planning, outdoor survey and design, surveying and mapping, construction survey and design, pole spacing measurement, electric power and telecommunications department measurement, etc.



-Do not squeeze or hit the instrument during use or transportation!

-When transporting the instrument, make sure that the packaging is intact!

-Under any circumstances, please don't disassemble the instrument without permission!

-When not used for a long time, please keep it in a ventilated and dry environment!
